Product Name: Chromium-Free AF Coated Galvalume Coil
Overview
Nano anti-fingerprint coating (0.5-2μm) on ASTM A792 Galvalume substrate delivers triple protection:
❶ Al-Zn layer - 1500+hrs salt spray resistance
❷ AF coating - Contamination/sweat inhibition
❸ ESD Control - Surface resistance 10⁵-10⁷Ω/sq

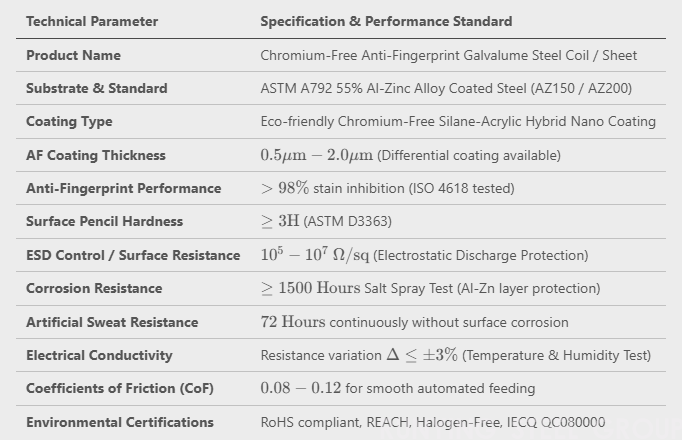

Technical Specifications

Key Benefits

Enhanced Electronics Assembly

• Eliminate solder defects from fingerprints, +2.3% SMT yield

• Coefficient of friction 0.08-0.12 for auto-feeding


Medical-Grade Cleanability

• ISO 14644-1 Class 6 certified

• Optional antibacterial coating (E.coli >99.5%)

Harsh Environment Protection

                Dual-layer defense: Base anti-corrosion + Surface anti-contamination

Sustainable Solution

• 100% recyclable substrate, low-temp pyrolysis

Premium Applications

• Energy Equipment:
  ✓ PV inverter housings ✓ EV charger panels

• Smart Appliances:
  ✓ Premium refrigerator sides ✓ Oven control panels

• Electronics:
  ✓ 5G cabinet chassis ✓ Server enclosures

• Medical Devices:
  ✓ CT scanner covers ✓ Analyzer workstations

Free Co-Engineering Service
Custom options:

• Coating color (Gray/Blue/Medical White)

• Functional hybrids (AF + Self-healing)

• Small coils (300-800kg for electronics)
