Galvanized Steel Coil
Galvanized steel coil, also named GI coil or zinc coating coil. The most common and widely used type on the market is hot dip galvanized steel sheet metal in coil. Hot dip galvanized steel coils are first pickled to remove iron oxide from the steel surface. After pickling, they are cleaned in an aqueous solution of ammonium chloride, zinc chloride, or a mixture of both, before being hot-dip galvanized. Hot-dip galvanized steel coils offer advantages such as uniform coating, strong adhesion, and a long service life. |
Product Name: Hot Dip Galvanized Steel Coil (GI/GL Coil)
Overview
Hot dip galvanized steel coils are first pickled to remove iron oxide from the steel surface. After pickling, they are cleaned in an aqueous solution of ammonium chloride, zinc chloride, or a mixture of both, before being hot-dip galvanized.

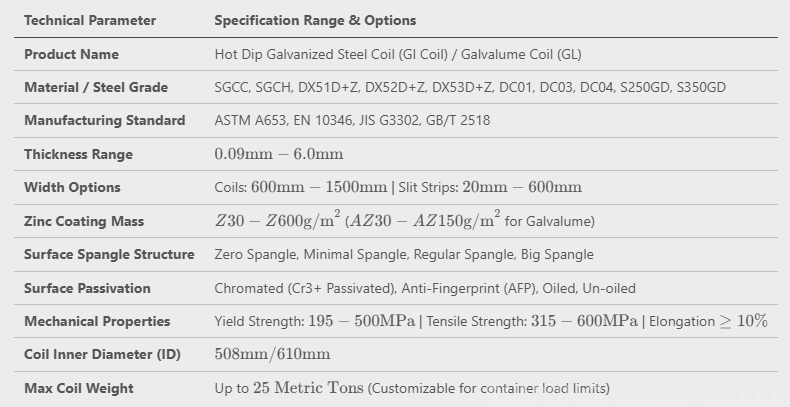

Product Name | Galvanized Steel Coil |
Material | SGCC/ SGCH/ DX51D/ DX52D/ DX53D/ DC01/ DC03/ DC04 |
Thickness | 0.09-6.0mm |
Width | Coil:600-1500mm / Strip: 20-600mm |
Zinc coating | Z30-600g/m2 |
Coil ID | 508 /610mm |
Coil Weight(MT) | 25(Max) |
Surface Structure | Regular spangle, Minimal spangle, Zero spangle, Big spangle |
Surface Treatment | Chromated/Non-chromated Oiled/Non-oiled |
Yield Strength(MPa) | 195-500MPa |
| Tensile Strength(MPa) | 315-600MPa |
| Elongation | ≥10% |
Superior Corrosion Resistance
Salt spray resistance ≥1000hrs (ASTM B117) at 100g/m² zinc coating
Excellent Formability
Withstands 180° bending without zinc peeling, suitable for stamping/roll-forming
Eco-Efficiency
3x longer lifespan than paint coatings, reducing lifecycle cost
Versatile Surface Options
Chromate passivation/anti-fingerprint treatments for enhanced paint/weldability
Construction: Steel structures, roofing sheets, HVAC ducts
Transportation: Highway guardrails, noise barriers, bridge cladding
Agricultural: Grain silos, harvester components
Appliances: Washing machine drums, outdoor AC frames
Solar Energy: PV mounting systems, electrical enclosures
Free Anti-Corrosion Consultation: Customizable zinc coating thickness (differential coating), surface gloss (30-80GU), and weather-proof packaging (VCI paper/steel strapping).
