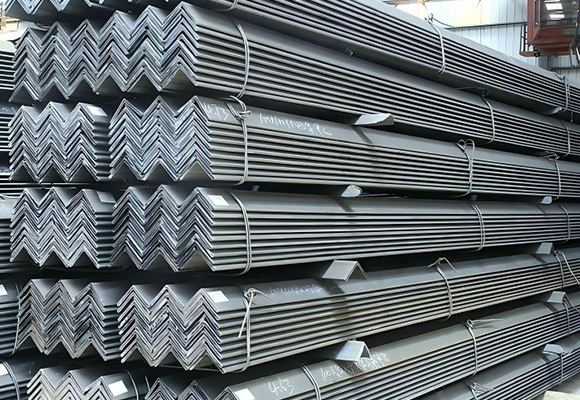

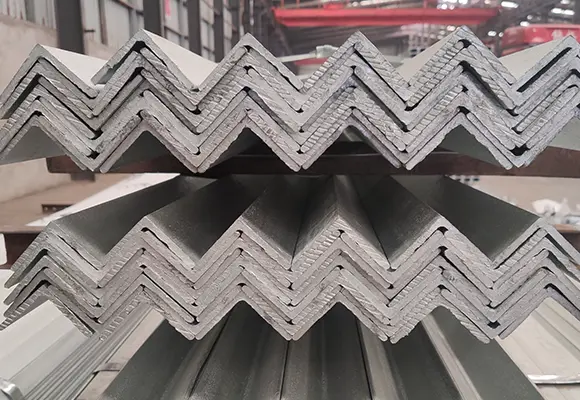

Galvanized Steel Angle Bar

Hot-rolled angles galvanized with ≥550g/㎡ zinc coating (ISO 1461 compliant). Dual corrosion protection withstands 1000hrs salt spray for 30-year service life in outdoor structures.

Return

Product details

Product Name: Hot-Dip Galvanized Equal/Unequal Angle
Overview
Hot-rolled angles galvanized with ≥550g/㎡ zinc coating (ISO 1461 compliant). Dual corrosion protection withstands 1000hrs salt spray for 30-year service life in outdoor structures.

Technical Specifications

Parameter	Equal Angle	Unequal Angle
Section Size	30×30-200×200mm	100×75-200×150mm

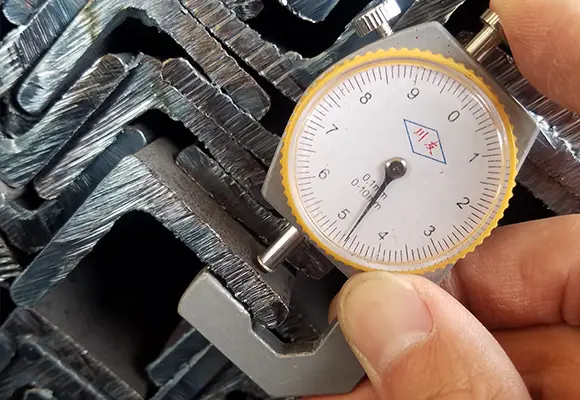

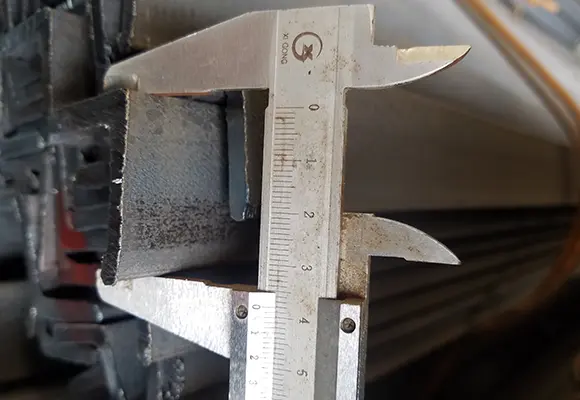

Thickness	3-20mm (±0.3mm)	4-20mm (±0.4mm)
Zinc Coating	≥550g/㎡ (avg)	Internal corner≥500g/㎡
Material Grade	Q235B/Q355B (GB)	S235JR/S355JR (EN)
Adhesion Test	Hammer test pass	Same
Salt Spray	1000h white rust≤5%	1000h red rust≤3%
Straightness	≤1.5mm/m (≤0.8mm/m adj.)	≤1.8mm/m (≤1.0mm/m adj.)

Key Advantages

1. Superior Corrosion Protection

Pure zinc barrier + Fe-Zn alloy layer
Self-healing at cut edges (≥2mm)
2. Economic Efficiency
60% lower maintenance vs painted steel
3. Global Certifications

Certification	Equal Angle	Unequal Angle
EU	EN ISO 1461 + CE	EN 10244-2 + CPR
USA	ASTM A123	ASTM A6 + AWS D1.1
GCC	GSO ISO 1461	SASO 502/2015

4. Pre-fabrication
Milled ends (flatness ≤0.3mm)
Pre-punched holes (±0.5mm)
