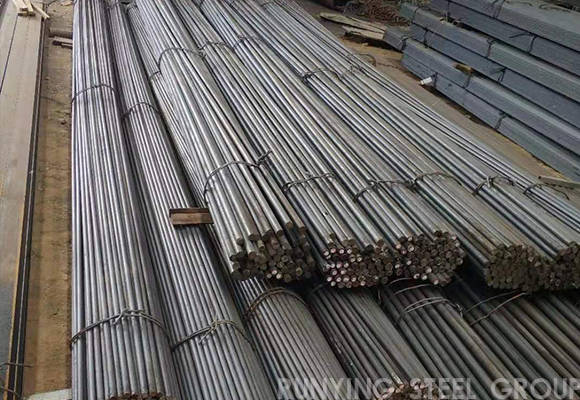

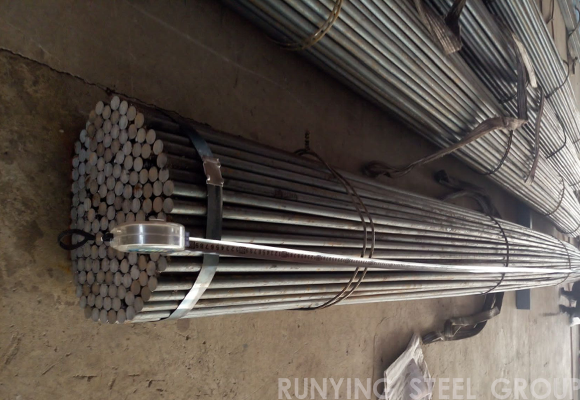

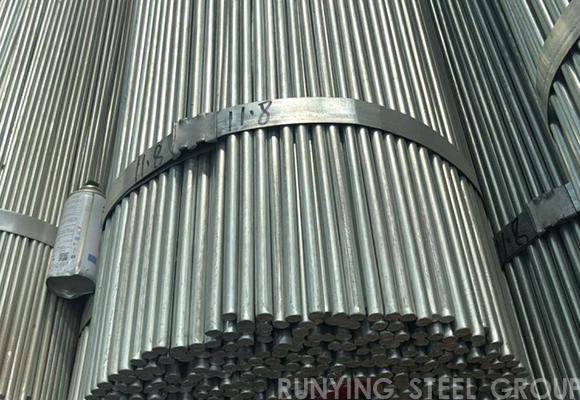

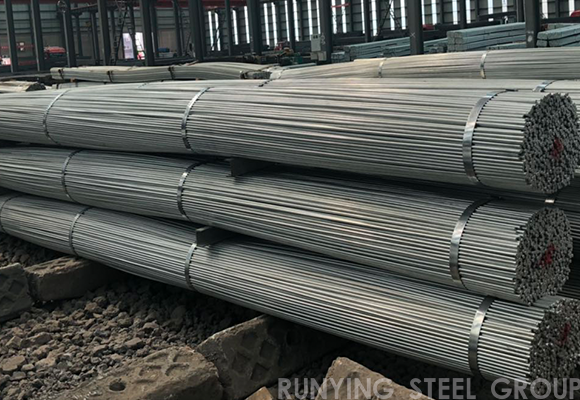

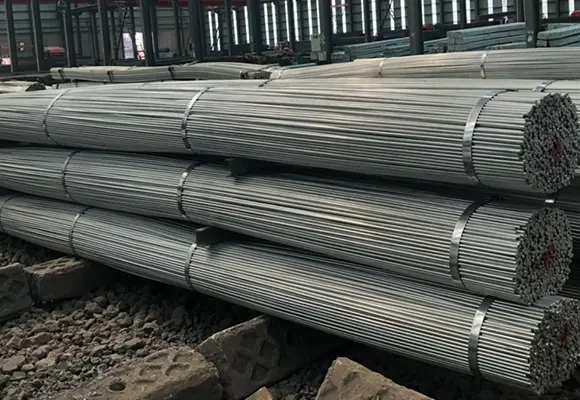

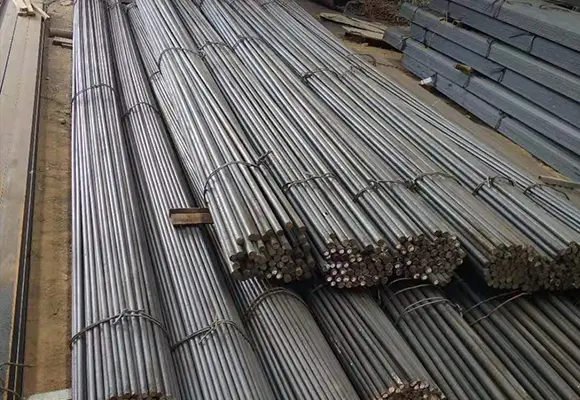

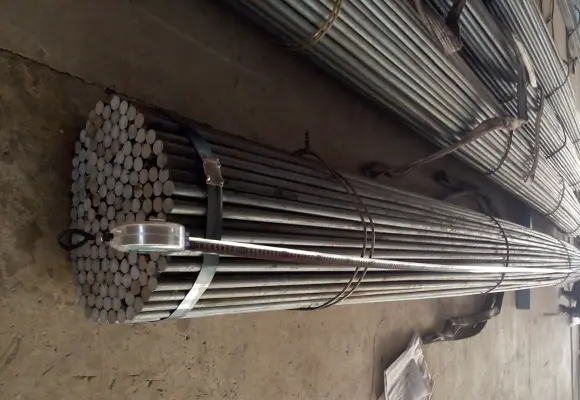

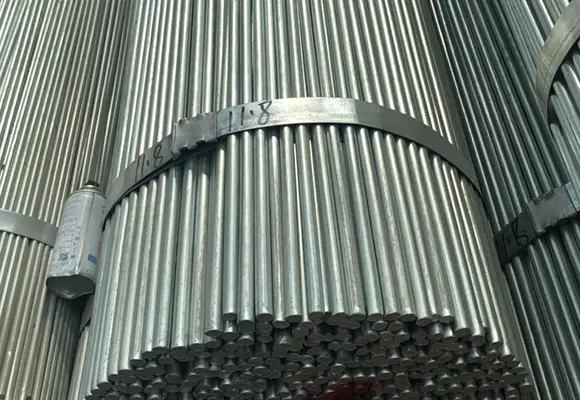

Round Bar

Hot-rolled (±0.3mm tol.) or cold-drawn (±0.02mm tol.) round bars in grades 45#-42CrMo, 304-316L, H13. Grain size ≥7, straightness ≤0.5mm/m for shafts, dies and fasteners.

Return

Product details

Product Name: Precision Hot Rolled/Cold Drawn Round Bar
Overview
Hot-rolled (±0.3mm tol.) or cold-drawn (±0.02mm tol.) round bars in grades 45#-42CrMo, 304-316L, H13. Grain size ≥7, straightness ≤0.5mm/m for shafts, dies and fasteners.

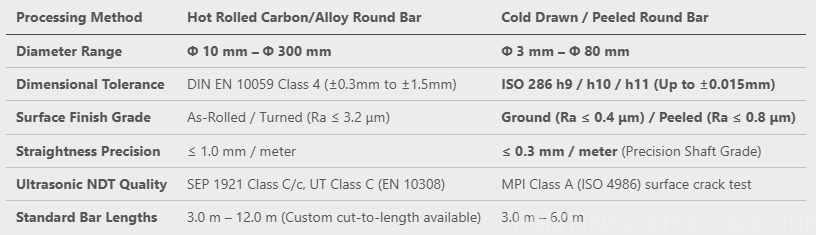

Technical Specifications

Parameter	Hot Rolled	Cold Drawn
Diameter Range	Φ10-300mm	Φ3-80mm
Tolerance	DIN EN 10059 Class 4	ISO 2868 h9
Surface Finish	As-rolled/Turned (Ra 3.2μm)	Ground (Ra 0.4μm)/Peeled (Ra 0.8μm)
Material Strength	45#: Yield≥355MPa	GCr15: HRC 60-62
Straightness	≤1mm/m	≤0.3mm/m
Heat Treatment	Normalized/Annealed	Spheroidized Annealed
NDT Standard	UT Class C (EN 10308)	MPI Class A (ISO 4986)

Key Advantages

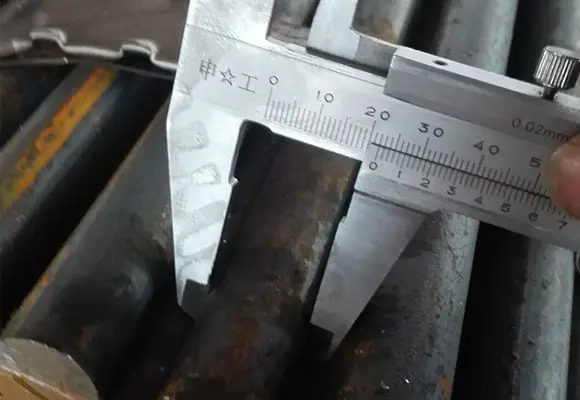

1. Precision Dimensional Control

Cold drawn: Diameter tol. ±0.015mm
Hot rolled: Ovality ≤0.15mm
2. Customized Properties

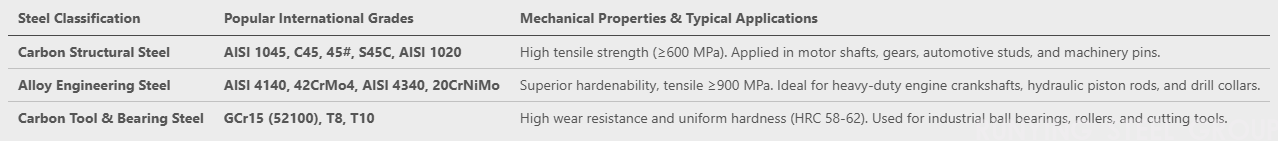

Application	Material Solution	Key Performance
Engine Crankshafts	42CrMoH	Tensile ≥ 900MPa Impact ≥ 40J
Injection Mold Cores	H13 ESR	HRC 48-52 Purity ≤ 0.5 Grade
Aerospace Fasteners	A286 Superalloy	650℃ Stress Rupture ≥ 300MPa

3. Global Compliance
USA: ASTM A29
EU: EN 10060
Japan: JIS G4051
