Galvanized Steel Coil (GI Coil): Definitive Purchasing & Specification Guide

Galvanized Steel Coil (GI Coil) is a cornerstone material for global construction, automotive, and manufacturing industries. Sourced primarily through hot-dip galvanizing (HDGI) or electro-galvanizing (EG), selecting the correct zinc coating mass, substrate thickness, and surface passivation directly dictates product lifespan and total procurement cost.

This comprehensive guide provides international buyers with technical specifications, standard compliance charts, and direct sourcing best practices from Tangshan's leading steel hub.

GI Coil Quick Specification Summary:

 · Thickness Range: 0.12mm - 4.0mm ($<span\; style="color:\; rgb(85,\; 85,\; 85);\; font-family:\; -apple-system,\; BlinkMacSystemFont,\; "Segoe\; WPC",\; "Segoe\; UI",\; system-ui,\; Ubuntu,\; "Droid\; Sans",\; sans-serif;\; font-size:\; 14px;\; background-color:\; rgb(242,\; 242,\; 242);">\pm </span>\mathrm{<span\; style="color:\; rgb(85,\; 85,\; 85);\; font-family:\; -apple-system,\; BlinkMacSystemFont,\; "Segoe\; WPC",\; "Segoe\; UI",\; system-ui,\; Ubuntu,\; "Droid\; Sans",\; sans-serif;\; font-size:\; 14px;\; background-color:\; rgb(242,\; 242,\; 242);">0.02</span>}\text{<span style="color: rgb(85, 85, 85); font-family: -apple-system, BlinkMacSystemFont, "Segoe WPC", "Segoe UI", system-ui, Ubuntu, "Droid Sans", sans-serif; font-size: 14px; background-color: rgb(242, 242, 242);">mm</span>}$±0.02mm precision tolerance)

 · Width Range: 600mm - 1250mm (Standard export widths: 914mm, 1000mm, 1219mm, 1250mm)

 · Zinc Coating Mass: Z40 - Z275 ${\text{g/m}}^2$g/m2 (G30 to G90)

 · International Standards: ASTM A653, EN 10346, JIS G3302, GB/T 2518

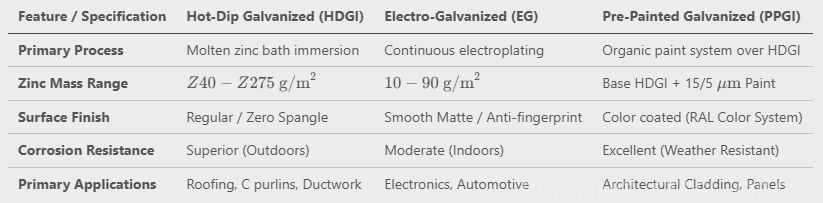

Technical Comparison: HDGI vs. EG vs. PPGI Coils

Selecting the optimal galvanized coil grade requires matching your application environment with the proper processing method:

Not sure whether to choose GI or GL? Read our detailed comparison on Galvanized vs Galvalume steel coil

Critical Procurement Factors for Global Importers

When issuing RFQs for hot-dip galvanized steel coils, procurement officers should specify three vital technical criteria:

1, Zinc Mass vs. Environmental Exposure: For standard indoor or mild urban environments, $Z60-Z120$Z60−Z120 provides adequate protection. For high-humidity, agricultural, or coastal infrastructure, Z$$180−Z275(G90) is strongly recommended to guarantee a 20+ year service life.

2, Surface Passivation & Oiling: To prevent wet storage stain (white rust) during ocean transit via Tianjin Port, all coils must undergo chemical passivation (chromated or lead-free) and light oiling ($0.5-1.5{\text{ g/m}}^2$0.5−1.5 g/m2).

3, Coil Weight & Packaging Limits: Standard export coils weigh between 3 to 8 Metric Tons to align with container crane limits and 20ft breakbulk freight parameters.

Why Source GI Coils from RUNYING Steel Group?

Based in Tangshan, China—the heart of global steel manufacturing—RUNYING Steel Group delivers mill-direct pricing, certified quality, and seamless logistics:

 · Direct Mill Access: Partnered with top-tier galvanizing mills guaranteeing prime substrate quality and continuous coating uniformity.

 · Seaworthy Packaging: Wrapped with inner VCI anti-rust paper, galvanized metal edge protectors, outer steel covers, and high-tensile radial/circumferential steel strapping.

 · Full Documentation: Every shipment includes Mill Test Certificates (MTC EN 10204 3.1), SGS/BV third-party inspection reports, and accurate HS code classification (7210.49.00).

Request Your Factory-Direct GI Coil Quote Today

Ready to optimize your GI coil supply chain with direct Tangshan mill rates? Contact our sales engineering team today for technical datasheets, live stock availability, and instant shipping estimates to your destination port:
