    Equal Angle Bar

    Equal angle iron rolled with equal leg lengths and 90°±0.5° angles. Grades: Q235B-S355JR (GB), A36/A572 (ASTM), S235JR-S355JR (EN). 15% stronger than welded steel angles for towers, bridges, and heavy supports.

    Return

    Product details

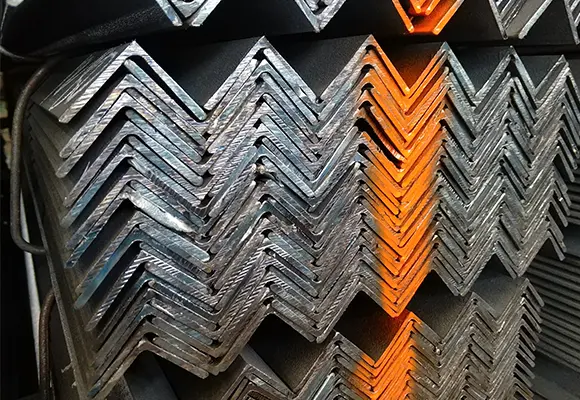

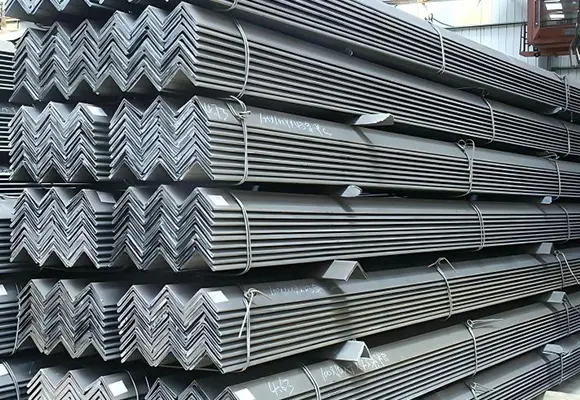

    Product Name: Hot Rolled Metal Equal Steel Angle

    Overview
    Equal angle iron rolled with equal leg lengths and 90°±0.5° angles. Grades: Q235B-S355JR (GB), A36/A572 (ASTM), S235JR-S355JR (EN). 15% stronger than welded steel angles for towers, bridges, and heavy supports.

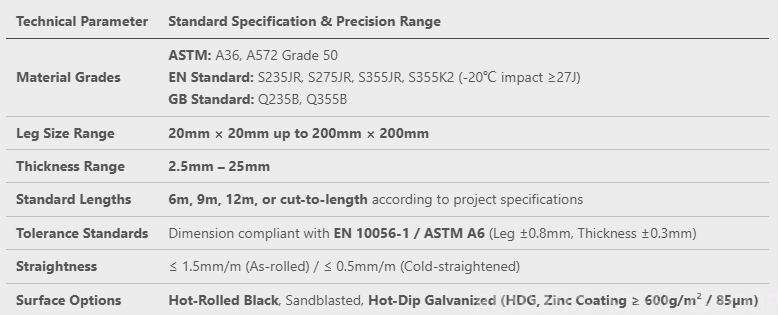

    Technical Specifications


    Leg Size×Thk20×3mm - 200×20mmLeg±0.8mm, Thk±0.3mm
    Yield StrengthQ355B: ≥355MPaS355JR: Tensile 470-630MPa
    Straightness≤1.5mm/m (EN 10056-1)≤0.5mm/m (cold-straightened)
    Angle Accuracy90°±0.5°Laser verified
    Weight0.89kg/m (L30×3) - 58.9kg/m (L200×20)±2.5% theoretical
    Surface FinishAs-rolled/Sandblasted/HDG (Zn≥600g/㎡)Salt spray ≥1000h

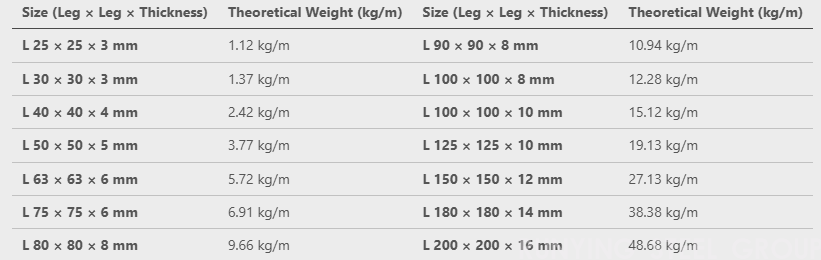

    Equal Angle Bar
    Size(mm)Kg/mSize(mm)Kg/mSize(mm)Kg/mSize(mm)Kg/m
    20*20*2.50.75450*50*53.7790*90*810.946130*130*1325.4
    20*20*30.87750*50*64.46590*90*1013.476130*130*1528.8
    20*20*41.14560*60*43.64390*90*1215.94140*140*1021.488
    25*25*2.50.9560*60*54.514100*100*69.366140*140*1225.522
    25*25*2.71.0260*60*65.42100*100*710.93140*140*1429.49
    25*25*31.12460*60*87.09100*100*812.276140*140*1633.393
    25*25*41.45963*63*43.097100*100*913.6150*150*1022.765
    25*25*51.77863*63*54.822100*100*1015.12150*150*1125.15
    25*25*62.0863*63*65.721100*100*1217.898150*150*1227.13
    30*30*2.31.07463*63*87.469100*100*1319.1150*150*1329.49
    30*30*2.51.1663*63*109.151100*100*1420.611150*150*1431.64
    30*30*31.37365*65*44.02100*100*1623.257150*150*1533.6
    30*30*41.78665*65*54.907110*110*711.928150*150*1635.87
    30*30*52.18465*65*65.841110*110*813.532150*150*1840.04
    30*30*6
    		2.56465*65*87.662110*110*915.02150*150*1941.9
    36.36*31.65670*70*44.372110*110*1016.69160*160*1024.729
    36*36*42.16370*70*55.397110*110*1219.782160*160*1229.391
    36*36*52.65470*70*66.406110*110*1422.809160*160*1433.987
    38*38*2.31.37170*70*77.398120*120*611.1160*160*1638.518
    38*38*2.51.48270*70*88.373120*120*712.9175*175*1231.8
    38*38*2.71.59370*70*99.34120*120*814.57175*175*1539.4
    38*38*31.75875*75*55.818120*120*916.5180*180*1233.159
    38*38*3.72.13775*75*66.905120*120*1018.055180*180*1438.383
    38*38*3.82.1975*75*77.976120*120*1119.9180*180*1643.542
    38*38*42.29775*75*89.03120*120*1221.6180*180*1848.634
    38*38*52.8275*75*99.96120*120*1526.6200*200*1442.894
    38*38*63.32675*75*1011.089125*125*815.504200*200*1545.3
    40*40*31.85280*80*56.221125*125*1019.133200*200*1648.68
    40*40*42.42280*80*67.376125*125*1222.696200*200*1854.401
    40*40*52.97680*80*78.525125*125*1426.193200*200*2060.056
    45*45*42.73680*80*89.658130*130*917.9200*200*2471.168
    45*45*59.36980*80*1011.874130*130*1019.635200*200*2573.6
    50*50*3
    		2.33290*90*68.35130*130*1121.7250*250*2593.7
    50*50*43.05990*90*79.656130*130*1223.4


    Key Advantages

    1. Structural Efficiency

    • 30% higher compression stability

    • 40% faster installation

    2. Global Compliance

    • RegionStandardCertification
      EuropeEN 10056-1CE Marking
      North AmericaASTM A6/A36CSA G40.21 44W
      Middle EastBS EN 10056GSO 1783/2013

    3. Heavy-Duty Performance

    • L150×15: Section modulus 98.5cm³

    • Low temp impact: ≥27J @ -20℃ (S355K2)

    4. Connection Solutions

    • Pre-punched holes (±0.5mm)

    • Milled ends (flatness ≤0.3mm)


    Get Your Metal Steel Angle Bar Quote Now!

    Runying Steel Group Company occasionally has low/mild/high carbon discount steel products for sale at a low price. For more information, please follow our public Facebook page (https://www.facebook.com/tangsteel) or contact our sales team directly.
