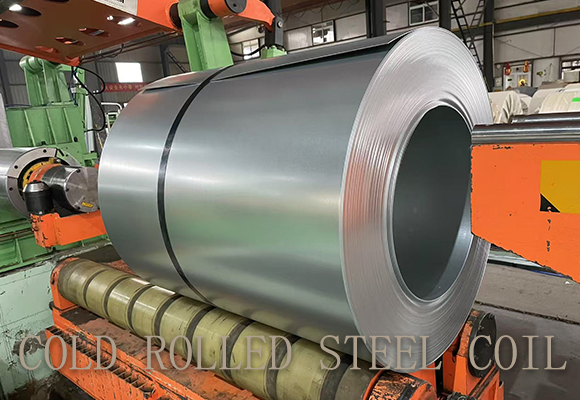

Cold Rolled Steel Coil / CR Coil
Manufactured from prime hot-rolled coils through pickling, cold reduction, annealing, and temper rolling, our cold rolled steel coils deliver exceptional surface finish, tight dimensional tolerance, and consistent mechanical properties – ideal for demanding industrial applications. |
Product Name: Precision Cold Rolled Steel Coil
Overview
Manufactured from prime hot-rolled coils through pickling, cold reduction, annealing, and temper rolling, our cold rolled steel coils deliver exceptional surface finish, tight dimensional tolerance, and consistent mechanical properties – ideal for demanding industrial applications.

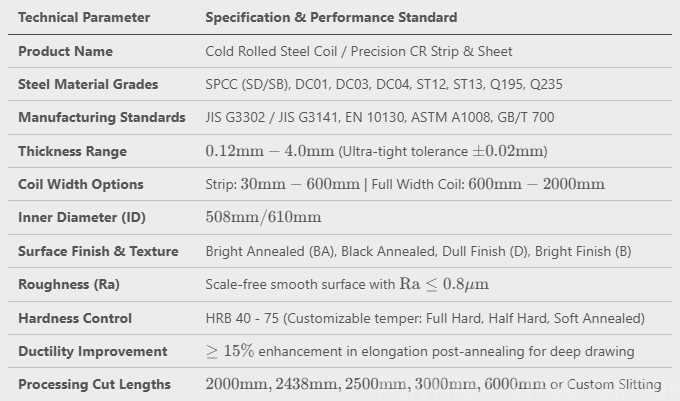

Parameter | Range |
---|---|
Material | SPCC, DC01, DC03, SECC, etc. |
Thickness | 0.15mm – 3.0mm |
Width | 600mm – 1500mm (Customizable) |
Inner Diameter | 508mm / 610mm |
Surface Finish | Bright, Matt |
Tensile Strength | 270MPa – 600MPa |
Standards | GB, JIS, ASTM, EN |
Ultra-Precise Tolerance
Thickness control within ±0.02mm for superior stamping performance.
Premium Surface Quality
Scale-free surface with Ra≤0.8μm, ready for painting/plating.
Enhanced Mechanical Properties
Uniform hardness (HRB 40-75) and 15% improved ductility after annealing.
Eco-Friendly & Durable
100% recyclable with optional corrosion-resistant coatings (GI/GL).
Automotive: Body panels, chassis components
Home Appliances: Refrigerators, AC units, washing machines
Machinery: Motor housings, hydraulic parts
Construction: Ceiling systems, partition walls
Electronics: Control cabinets, junction boxes
Request Custom Solutions
Tailor-made chemical composition & mechanical properties per ASTM/JIS/DIN standards. SGS test reports available.
