Color Coated Roofing Sheet
Roll-formed from Galvalume AZ150 substrate with 25μm PVDF coating (70% resin content). AAMA 2605 compliant with 30-year warranty, ΔE≤5 after 25-year exposure. |

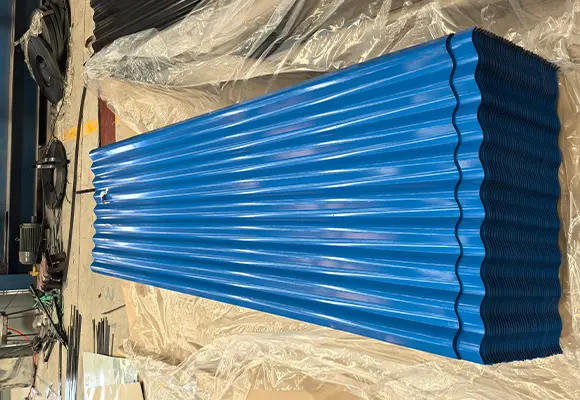

Product Name: PVDF Coated Corrugated Roofing Panel
Overview
Roll-formed from Galvalume AZ150 substrate with 25μm PVDF coating (70% resin content). AAMA 2605 compliant with 30-year warranty, ΔE≤5 after 25-year exposure.

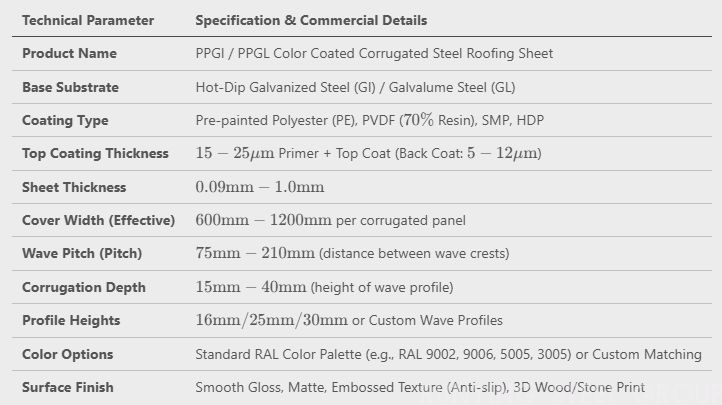

| Parameter | Standard |
|---|---|
| Substrate | AZ150 Galvalume / Z275 GI |
| Coating System | 2/2 Both Sides (Primer+PVDF) |
| Coating Thickness | Face 25-35μm / Back 12-20μm |
| Effective Width | 750/830/1000mm |
| Profile Height | 16mm/25mm/30mm |
| Length | 0.5m-12m (±2mm) |
| Color Standard | RAL/Pantone ±0.5ΔE |
| Solar Reflectance | ≥80% (Cool Roof Rating) |
| Fire Rating | A2 (EN 13501-1) |
1. Extreme Durability
1500hrs salt spray resistance (substrate)
4000hrs QUV accelerated weathering (coating)
2. Energy Efficiency
Solar Reflectance Index ≥102
Reduces cooling load by 30%
3. Installation Efficiency
Concealed clip system (10.5kPa wind uplift resistance)
Only 4 screws per m² required
4. Sustainability
Contributes to LEED v4.1 MRc2 credits
Fully recyclable (ISO 14021)
5. Aesthetic Versatility
3D textures: Wood/Stone/Brushed Metal
Minimum 18m bending radius capability
| Project Type | Signature Projects | Recommended Spec |
|---|---|---|
| Warehouses | Prologis Smart Warehouse | AZ150+25μm PVDF Grey |
| Factories | Tesla Gigafactory Roof | Z275+30μm HDP Ivory |
| Commercial | Changi Jewel Canopy | AZ200+35μm PVDF Iridescent |
| Agriculture | Dutch Glasshouse | AZ100+Antibacterial Translucent |
| BIPV | Dubai Solar Park Carport | AZ150+High-Reflectivity White |
