Galvanized Steel Metal Sheet
Galvanized steel metal sheet, also named GI sheet or zinc coating plated sheet. The most common and widely used type on the market is 4x8 hot dip galvanized steel sheet metal. Hot dip galvanized sheet metal are first pickled to remove iron oxide from the steel surface. After pickling, they are cleaned in an aqueous solution of ammonium chloride, zinc chloride, or a mixture of both, before being hot-dip galvanized. Hot-dip galvanized sheets offer advantages such as uniform coating, strong adhesion, and a long service life. |
Product Name: Hot Dip Galvanized Steel Metal Sheet (GI / GL Sheet)
Overview
Galvanized steel metal sheet, also named GI sheet or zinc coating plated sheet. The most common and widely used type on the market is 4x8 hot dip galvanized steel sheet metal. Hot dip galvanized sheet metal are first pickled to remove iron oxide from the steel surface. After pickling, they are cleaned in an aqueous solution of ammonium chloride, zinc chloride, or a mixture of both, before being hot-dip galvanized. Hot-dip galvanized sheets offer advantages such as uniform coating, strong adhesion, and a long service life.

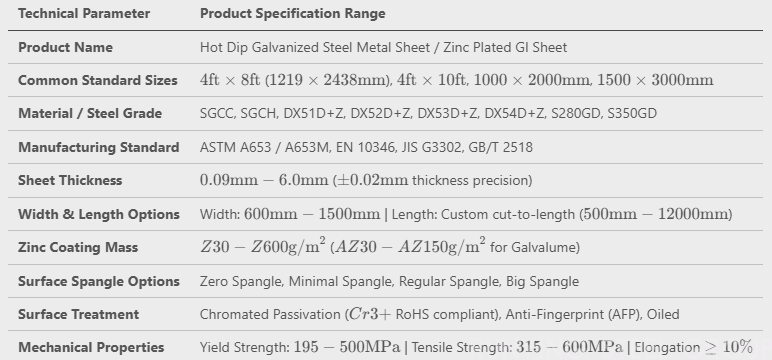

| Name | Galvanized Steel Metal Sheet |
|---|---|
| Material | SGCC/ SGCH/ DX51D/ DX52D/ DX53D/ DC01/ DC03/ DC04 |
| Thickness | 0.09-6.0mm |
| Width | 20-1500mm |
| Zinc coating | Z30-600g/m2 |
| Surface Structure | Regular spangle, Minimal spangle, Zero spangle, Big spangle |
| Surface Treatment | Chromated/Non-chromated Oiled/Non-oiled |
| Yield Strength(MPa) | 195-500MPa |
| Tensile Strength(MPa) | 315-600MPa |
| Elongation | ≥10% |
Active-Passive Protection
Sacrificial anode + barrier film
Z120 coating: ≥800hrs salt spray (ASTM B117)
Superior Formability
EDDQ grade elongation >30% for complex stamping
Universal Adaptability
Architecture: Roofing, cable trays
Automotive: Seat frames, fuel tanks
Appliances: Washing machine tubs
Green Solutions
Chromate-free passivation (RoHS)
AF coating available (μ=0.10-0.15)
Global Logistics
Weather-proof packaging (VCI paper)
SGS test reports (coating adhesion)

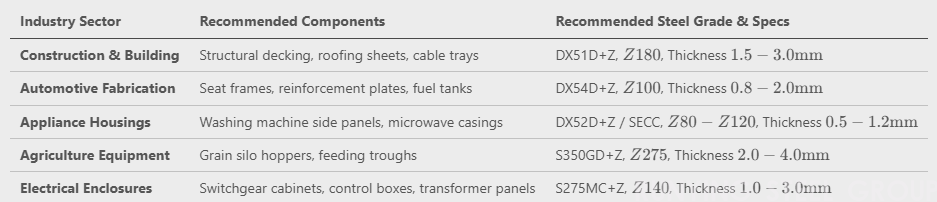

| Sector | Components | Recommended Spec |
|---|---|---|
| Construction | Steel structures | Z180 skin-pass δ1.5-3.0mm |
| Automotive | Seat frames | DX54D+Z δ0.8-2.0mm |
| Appliances | Microwave oven casing | SECC-N2 δ0.5-1.2mm |
| Agriculture | Grain silo hoppers | S350GD+Z δ2.0-4.0mm |
| Electrical | Switchgear cabinets | S275MC+Z δ1.0-3.0mm |
